MIX SERIES

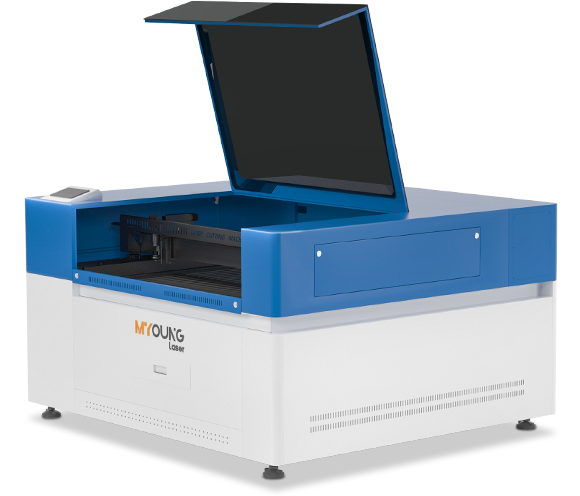

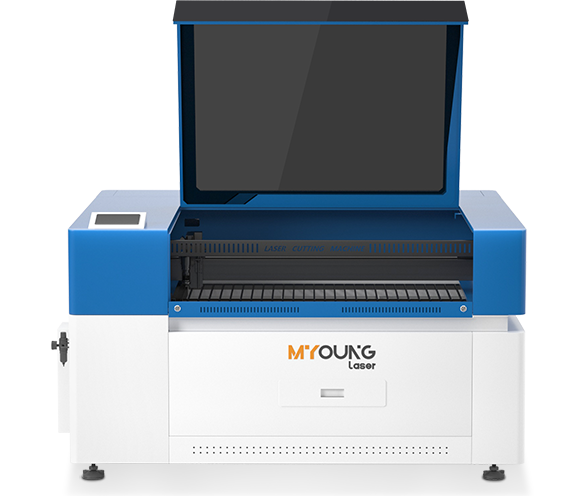

The machine will use the frame structure, that is, square metal tube welded overall metal frame + sheet metal structure, the reason we adopt this structure is because: the contact surface of the ball screw and guide rail will be installed on the square metal tube, we will use the milling machine to polish the square metal tube to ensure the accuracy of the installation of the ball screw and guide rail, after we do this step the installation accuracy will be within 0.2mm, for a 300W power cutting thick plate using this structure can have a higher cutting accuracy, thus the structure of the MIX13 machine and the normal 1390/9060 CO2 laser machine will be difference.

Closed-loop control system using Taiwan Delta servo motor and drive, the closed-loop system can compensate for errors through the feedback mechanism to improve the accuracy of the system output; at the same time has strong stability, able to adapt to system changes and resistance to interference. Servo motor can bring faster speed and response speed, usually the speed can reach 2000 rpm and motor acceleration and deceleration of the dynamic response time within a few dozen milliseconds, very fast. This also brings higher accuracy and cutting efficiency to the cutting of acrylic and wood panels. When cutting the same thickness of acrylic, the servo motor machine is 30%-40% faster than the belt structure of the machine.

RDC6445G has very good hardware stability, better anti-voltage and anti-static interference characteristics. Its man-machine operating system has more friendly operation interface and more powerful functions. The controller includes better and better motion control functions, provides large-capacity file memory, and supports Ethernet communication and USB communication with PC automatically optional, etc.

The new generation of built-in auto-focus cutting head, when you need the auto-focus function turn "ON"this function on the software, when cutting different thickness material for every time the cutting head will automatically find the distance to the surface of the material, let the operation more intelligent.

As we know that the quality of electrical components will directly affect the performance of the machine and whether the machine can function at its best , MIX13 use Taiwan Meanwell power supply to avoid signal interference and output stability and quality relays to keep machine runs at best performance. When use the machine there will produce heat for the electric cabinet, as well as dust will go inside of the electric cabinet also, equip with a heat ex changer can keep the cabinet in a constant temperature, extending the service life of the circuit, replays etc.

PMI is made of German high quality steel and go through the deep cooling treatment, with high steel four directional equal load design, the automatic centering ability can maintain high precision operation for a long time. PMI and TBI can repeat positioning with higher accuracy,when fast running can be run with smooth travel and low noise. TBI ball screws are specially designed so that even if the technical spline sleeve is detached from the spline shaft, the ball screw does not fall off, making assembly/maintenance and inspection easy. The TBI ball screw with epoch-making significance can make high precision cutting of acrylic with thickness up to 40mm, improve production efficiency and product quality, and bring great economic benefits to enterprise production efficiency and product quality.
